Best Practices for Certified Pipeline Valve Selection: From Specs to Installation

Certified pipeline valve selection is one of the most critical steps in designing reliable fluid and pipeline systems for industries such as oil and gas, power generation, and chemical processing. Choosing the right high-pressure certified valve from the beginning prevents premature replacements, ensures system integrity, and maintains operational safety under demanding conditions. Among the most important components are pressure relief valves (safety relief valves), which protect high-pressure pipelines from ruptures, uncontrolled hydrocarbon release, and catastrophic equipment failure. For industrial applications, selecting valves that meet API, ASME, and ISO certification standards is essential to guarantee safety, efficiency, and long-term reliability. Each industry has unique requirements, from combustible gas service to corrosive chemical environments, making proper valve specification crucial.

In this guide, we apply the STAMPED method (Size, Temperature, Application, Media, Pressure, Ends, Delivery) to valve selection, explore critical API standards including API 527, API 598, API 608, API 600, API 603, and API 599, review material compatibility and installation QA procedures, and outline strategies to avoid costly warranty and procurement pitfalls in global supply chains.

Applying the STAMPED Method to Certified Pipeline Valves

The STAMPED method serves as a robust framework for selecting the right valves for pipeline systems. This systematic approach ensures that all critical factors are considered before making a final selection.

S: Size and Flow Coefficient (Cv) for Industrial Pipeline Valves

Proper sizing directly correlates with a valve's flow capacity. The flow coefficient (Cv) indicates how much water will flow through a valve per minute with a 1 psi pressure drop at 60°F. For industrial applications, selecting a valve with a Cv value between 20% and 80% of open stem travel is recommended for optimal performance. Notably, different valve types offer varying flow characteristics - ball valves provide minimal flow resistance with larger Cvs (up to 47 for 2-inch regulators), whereas needle valves offer more precise control with smaller Cvs. Valve sizing software and valve sizing calculations are essential tools for determining the appropriate size and Cv for specific applications.

T: Temperature Ratings for High-Pressure Pipeline Safety

Temperature significantly impacts valve performance and longevity. As temperature increases, the working pressure rating typically decreases. Consequently, valves must be tested at temperature extremes to ensure reliable operation. Both the media temperature and ambient environmental conditions must be considered, especially for valves installed outdoors where they face exposure to elements like direct sunlight, rain, or frost.

A: Application-Specific Valve Types (Ball, Gate, Relief)

Different valve types serve distinct functions:

• Ball valves provide quick quarter-turn operation and reliable shutoff, ideal for starting or stopping flow
• Gate valves offer minimal flow resistance when fully open, making them perfect for applications requiring full flow with minimal pressure drop
• Safety relief valves protect systems from overpressure, with settings typically 20-50 psig above the maximum operating pressure

M: Media Compatibility in Oil, Gas, and Chemical Systems

Media compatibility is essential for preventing corrosion, embrittlement, or stress corrosion cracking. Chemical resistance charts help identify suitable materials for specific applications. For sour gas environments, valves with appropriate corrosion resistance are vital. Furthermore, compatibility between valves and other components like fittings, flanges, and bolts ensures a safe, leak-free connection.

P: Pressure Ratings and Pressure Relief Valve Integration

Pressure relief devices must be sized according to the maximum allowable working pressure (MAWP) and set to operate at predetermined limits. For a single pressure relief device installation, the maximum pressure accumulation allowed during an overpressure event must be limited to 3%. Moreover, pressure vessels should use direct spring-loaded safety relief valves that operate automatically when set pressure is exceeded. Relief valve sizing and relief valve sizes are critical factors in ensuring proper overpressure protection. Back pressure considerations also play a crucial role in the design and operation of pressure relief systems.

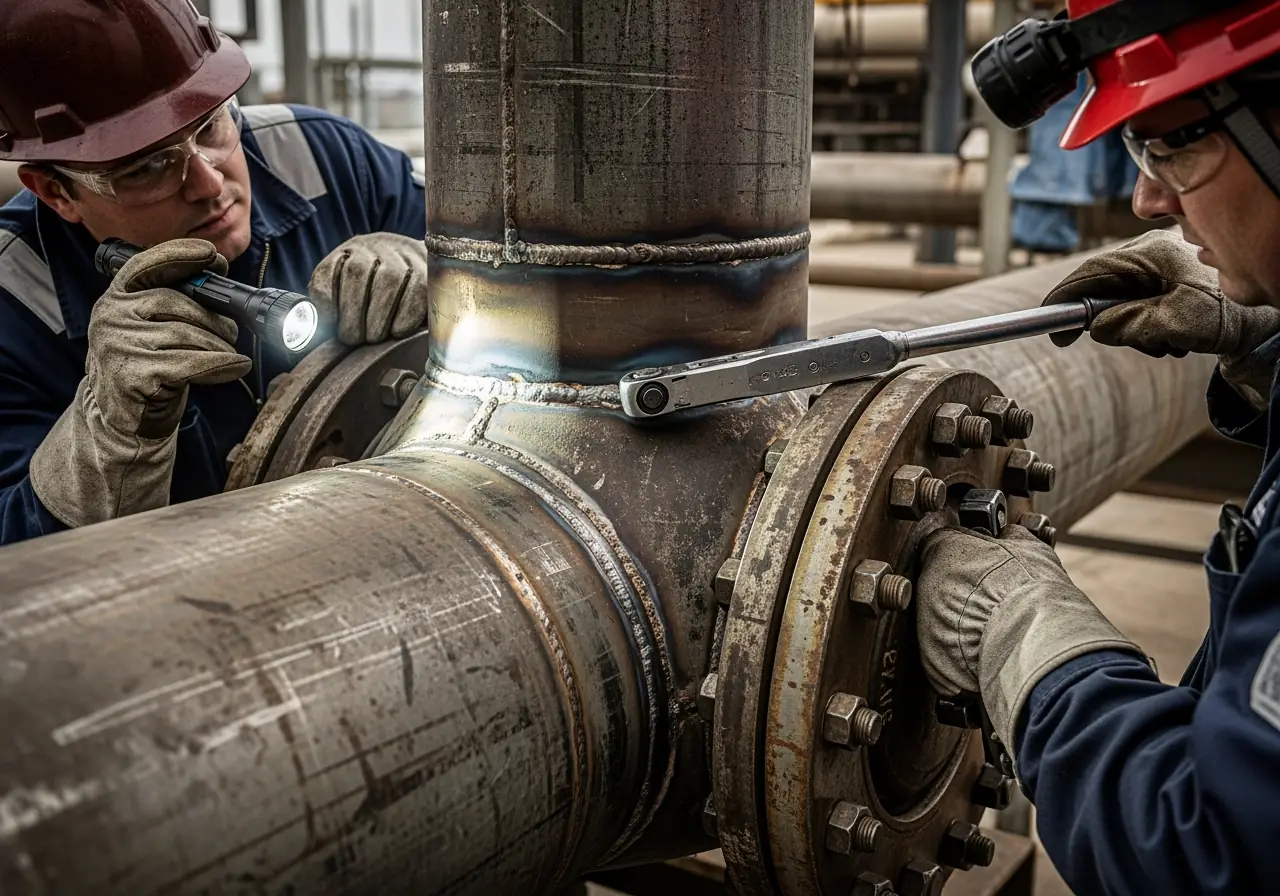

E: End Connections for Seamless Pipeline Integration

Common end connections include threaded, flanged, socket, welded, and ferrule connections. Each offers distinct advantages - flanged connections work well for large diameter, high-pressure environments but may be susceptible to leakage due to temperature changes. Welded connections provide firm, leak-free joints ideal for high-pressure systems in petroleum and chemical industries.

D: Delivery Timelines and Global Valve Procurement

Special valves, particularly large-size and high-pressure class types, often have lengthy procurement times - sometimes up to one and a half years from order to delivery. Factors affecting timelines include manufacturer capacity, additional options like coatings or stem extensions, and economic sanctions. Consequently, early planning and vetting suppliers for reliable delivery becomes crucial for project success.

Our team helps you apply best practices - STAMPED method, material compatibility, and QA checks - so every valve you install ensures long-term safety and performance.

Certification and Compliance Checklist for Valve Selection

Proper certification ensures pipeline valves meet industry standards for safety and performance. Understanding the differences between certification types is essential for compliance.

API Certified Valves vs ASME Valve Standards

API standards primarily serve the oil and gas industries, focusing on equipment handling petroleum products. In contrast, ASME standards cover a broader range of mechanical engineering applications. API valves are designed for high pressure, high temperature, and extreme conditions typical in oil and gas fields. Unlike ASME valves, API valves undergo rigorous testing specifically for leak prevention and safety in harsh environments. API 527 and API 598 are key standards for valve testing and inspection. Additionally, API 608 covers metal ball valves, API 600 pertains to steel gate valves, API 603 addresses corrosion-resistant bolted bonnet gate valves, and API 599 is for metal plug valves.

ISO Valve Certification Requirements for Global Projects

ISO certifications validate consistent manufacturing processes worldwide. Key ISO standards include ISO 9001 (quality management), ISO 14001 (environmental management), and ISO 45001 (occupational safety). These certifications ensure systematic quality control throughout the valve production process, reducing procurement risks for global projects.

Pressure Vessel Relief Valve Compliance per API 520/521

API 520/521 standards govern pressure relief device design, sizing, and installation. They specify proper sizing, selection, and documentation requirements for pressure relief devices. Compliance involves understanding overpressure causes and calculating appropriate flow rates. These standards are crucial for ensuring the effectiveness of pressure relief systems and proper relief valve piping design.

Safety Standards for Valves in Power and Chemical Plants

Power and chemical plants require additional certifications due to extreme operating conditions. ASME BPVC Section VIII dictates pressure vessel valve requirements, while specific material selection criteria address corrosion resistance needs in chemical processing environments. The pressure vessel code provides guidelines for the design and construction of pressure vessels, including requirements for pressure relief devices and overall pressure relief system design.

Rely on MCH Parts to source API, ASME, and ISO certified valves that keep your high-pressure pipeline systems safe, compliant, and operating without costly delays.

Diagnostics and Material Specification for Long-Term Reliability

Material selection remains the cornerstone of long-term valve reliability in pipeline systems. Indeed, proper diagnostics and material specifications help prevent costly failures and maintenance issues.

Material Compatibility Table: Stainless Steel vs Alloy Steel

Stainless steel valves (316L, 22Cr duplex, 25Cr duplex) offer higher corrosion resistance and can tolerate temperatures up to 1500°F (800°C). They provide moderate strength but come at a higher cost. Alloy steel valves, typically carbon steel with chromium, deliver greater strength at a lower price. However, they have only moderate temperature tolerance and lower corrosion resistance, often requiring protective coatings.

Corrosion Resistance in Natural Gas and Sour Gas Environments

H2S in sour gas causes sulfide stress cracking (SSC), especially in high-strength carbon and low-alloy steels. For these environments, alloys like 625 and C-276 offer superior resistance. Nevertheless, even these materials become vulnerable in the presence of elemental sulfur, which causes severe pitting.

Diagnostics for Valve Wear, Leakage, and Fugitive Emissions

Monitoring fugitive emissions requires specific protocols:

• EPA Method 21 for processes with VOCs using specialized monitoring instruments
• Digital valve controllers can remotely count travel cycles and identify abnormal stem packing friction
• Diagnostics data reveals exactly when valves begin to operate outside specifications

Selecting High-Pressure Valves for Power Plant Applications

Power plant applications often require metal-seated ball valves that withstand temperatures exceeding 1,000°F. In fact, triple-offset butterfly valves deliver bubble-tight sealing for high-pressure, high-temperature conditions.

Installer QA, Sourcing Shortcuts, and Warranty Pitfalls

Effective valve installation alongside proper sourcing creates the foundation for pipeline system reliability. Training, quality control, and supplier selection require careful attention to maximize performance and minimize risk.

Pipeline Valve Training for Certified Pipeline Engineers

Comprehensive valve training programs come in multiple formats including on-site instructor-led courses, virtual classrooms, and eLearning modules. Border States offers specialized training for gas and pipeline valve maintenance, covering essential areas such as hydraulic gun maintenance, plug valves, ball valves, and DOT requirements. Their training includes demonstration videos that walk through required valve maintenance techniques and proper use of lubrication equipment.

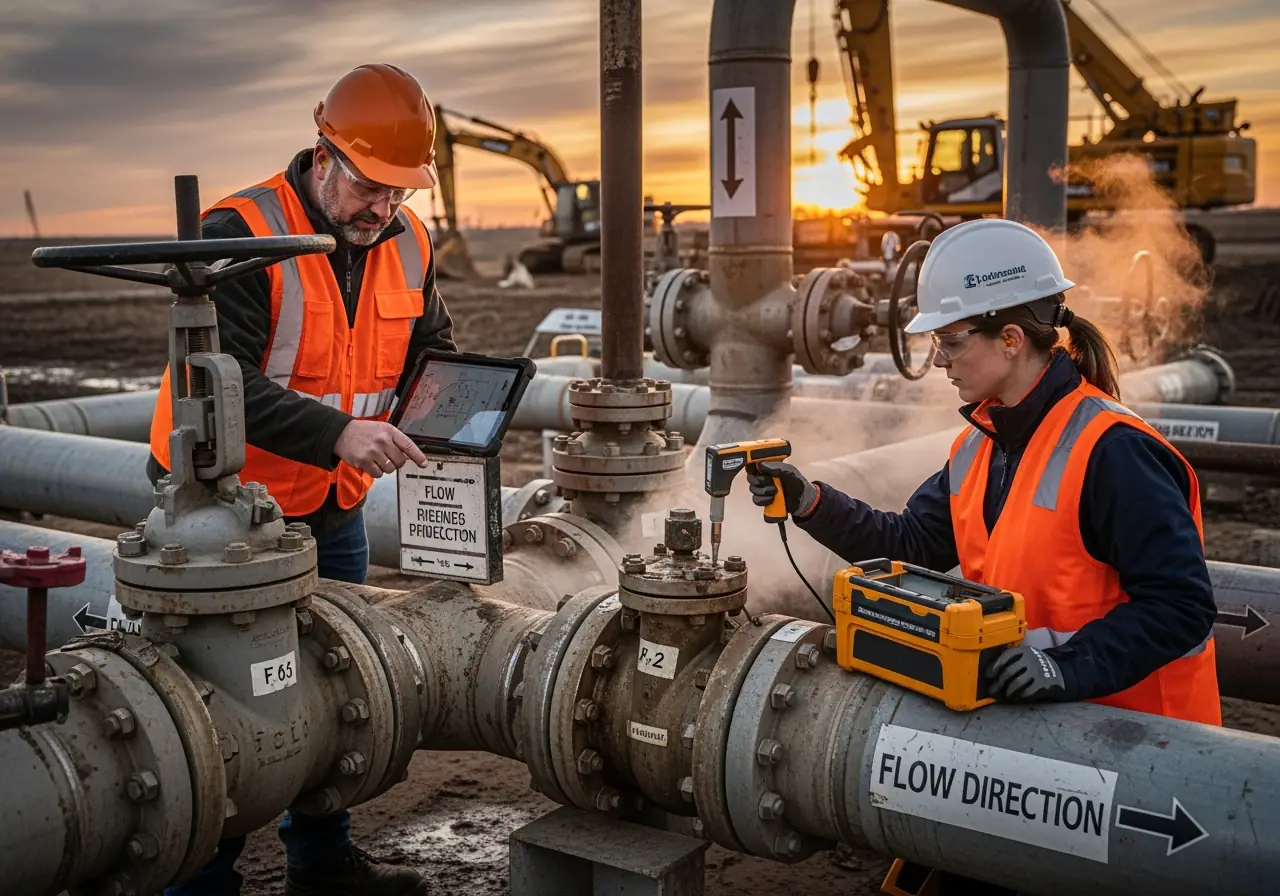

Installer Quality Assurance Checklist for Valve Installation

Prior to accepting valve installations, verify these critical points:

• Control valve types and CV values match approved specifications
• Valves are installed in correct locations per approved drawings
• Valves are installed in the proper flow direction
• Installations don't leak during pressure testing
• Valves are clearly labeled with number, CV value, and size
• Valves are accessible and can be removed without disrupting adjacent pipework

Common Warranty Pitfalls in Certified Valves Procurement

Beyond standard warranty terms, underperforming or nonconforming products cost U.S. industries hundreds of billions annually. Quality assurance programs must include surveillance and verification processes that continuously monitor suppliers and products through formal procedures. Avoiding warranty pitfalls requires examining supplier accreditations like ISO 9001 and ISO/IEC 17025.

Sourcing Shortcuts: Local vs Global Valve Suppliers

Effective suppliers maintain redundancies in supply and logistics while monitoring markets for potential disruptions. They develop extensive market knowledge through experience and intelligence gathering. Initially, customers often focus primarily on price rather than asking tough questions about a supplier's quality program - potentially an expensive mistake considering the catastrophic consequences of product failure.

From stainless steel to alloy steel valves, we provide certified components from trusted manufacturers worldwide - delivered quickly and reliably to your project site.

Conclusion

Selecting the right certified pipeline valves is a critical decision that directly influences system integrity, operational safety, and long-term reliability in industries such as oil and gas, power generation, and chemical processing. By applying the STAMPED method (Size, Temperature, Application, Media, Pressure, Ends, Delivery), operators ensure every factor - from valve size and flow coefficient to temperature ratings, pressure limits, and end connections - is properly evaluated.

Choosing the correct application-specific valve type (ball, gate, or safety relief), along with ensuring media compatibility, prevents corrosion, stress cracking, and costly failures. Compliance with API, ASME, and ISO valve standards validates quality, while correct material selection - whether stainless steel for corrosion resistance or alloy steel for higher strength - optimizes performance. Equally important, strict installation QA checklists and awareness of warranty pitfalls safeguard investments in both local and global valve procurement. Ultimately, following these best practices reduces downtime, lowers maintenance costs, and guarantees reliable operation of high-pressure pipeline systems.

Key Takeaways

Master these essential practices to ensure reliable, safe, and cost-effective pipeline valve selection and installation:

• Apply the STAMPED method systematically - Size (Cv values), Temperature ratings, Application type, Media compatibility, Pressure limits, End connections, and Delivery timelines ensure comprehensive valve selection.

• Prioritize proper certification standards - API for oil/gas applications (including API 608, 600, 603, and 599), ASME for broader mechanical systems, and ISO for global projects guarantee compliance and performance reliability.

• Select materials based on operating environment - Stainless steel (316L) offers superior corrosion resistance while alloy steel provides higher strength; sour gas requires specialized H2S-resistant materials.

• Implement rigorous installation QA protocols - Verify specifications match drawings, check flow direction, conduct pressure testing, and ensure accessibility for maintenance to prevent costly failures.

• Avoid sourcing shortcuts and warranty pitfalls - Focus on supplier quality programs and accreditations rather than price alone, as valve failures can cost hundreds of billions annually across industries.

Proper valve selection using these practices prevents premature replacements, reduces maintenance costs, and maintains system integrity across oil, gas, power, and chemical applications. Early planning and systematic evaluation of each factor creates the foundation for long-term pipeline reliability and operational safety.

FAQs

Q1. What is the STAMPED method for valve selection? The STAMPED method is a systematic approach for selecting pipeline valves. It considers Size, Temperature, Application, Media, Pressure, End connections, and Delivery timelines to ensure all critical factors are evaluated before making a final valve selection.

Q2. How do API and ASME valve standards differ? API standards primarily focus on oil and gas industry equipment, designed for high pressure and extreme conditions. ASME standards cover a broader range of mechanical engineering applications. API valves undergo more rigorous testing for leak prevention in harsh environments, with standards like API 527, API 598, API 608, API 600, API 603, and API 599 governing specific aspects of valve performance.

Q3. What factors should be considered when selecting materials for pipeline valves? Key factors include corrosion resistance, temperature tolerance, strength, and cost. For example, stainless steel offers higher corrosion resistance, while alloy steel provides greater strength. The specific operating environment, such as exposure to sour gas, should also be considered.

Q4. How can valve wear and leakage be diagnosed? Valve wear and leakage can be diagnosed through various methods, including EPA Method 21 for monitoring fugitive emissions, digital valve controllers to track travel cycles and stem packing friction, and diagnostics data to identify when valves operate outside specifications.

Q5. What are some important quality assurance checks for valve installation? Key quality assurance checks include verifying that valve types and Cv values match approved specifications, ensuring correct installation location and flow direction, conducting pressure testing for leaks, proper labeling of valves, and confirming accessibility for maintenance and removal. Additionally, ensuring compliance with standards like ASME Section VIII for pressure vessels is crucial for safety and reliability in pressure relief systems.
